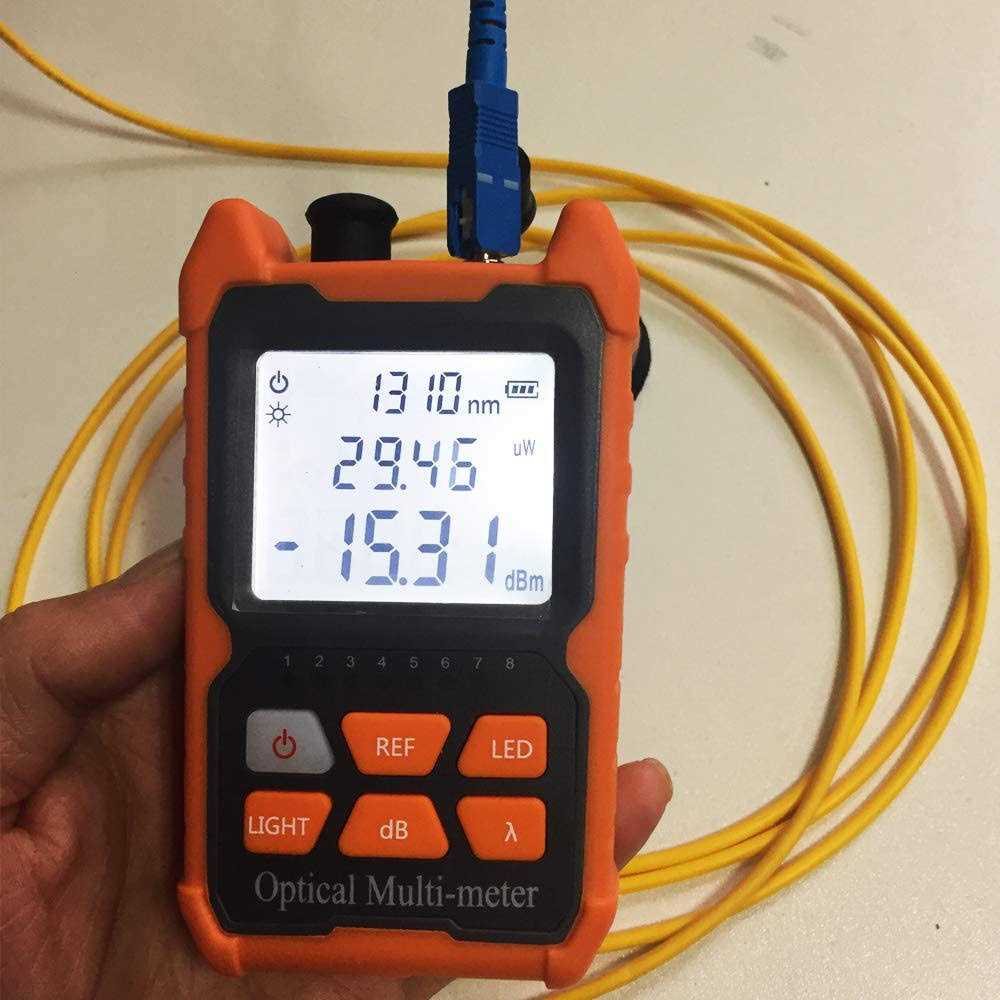

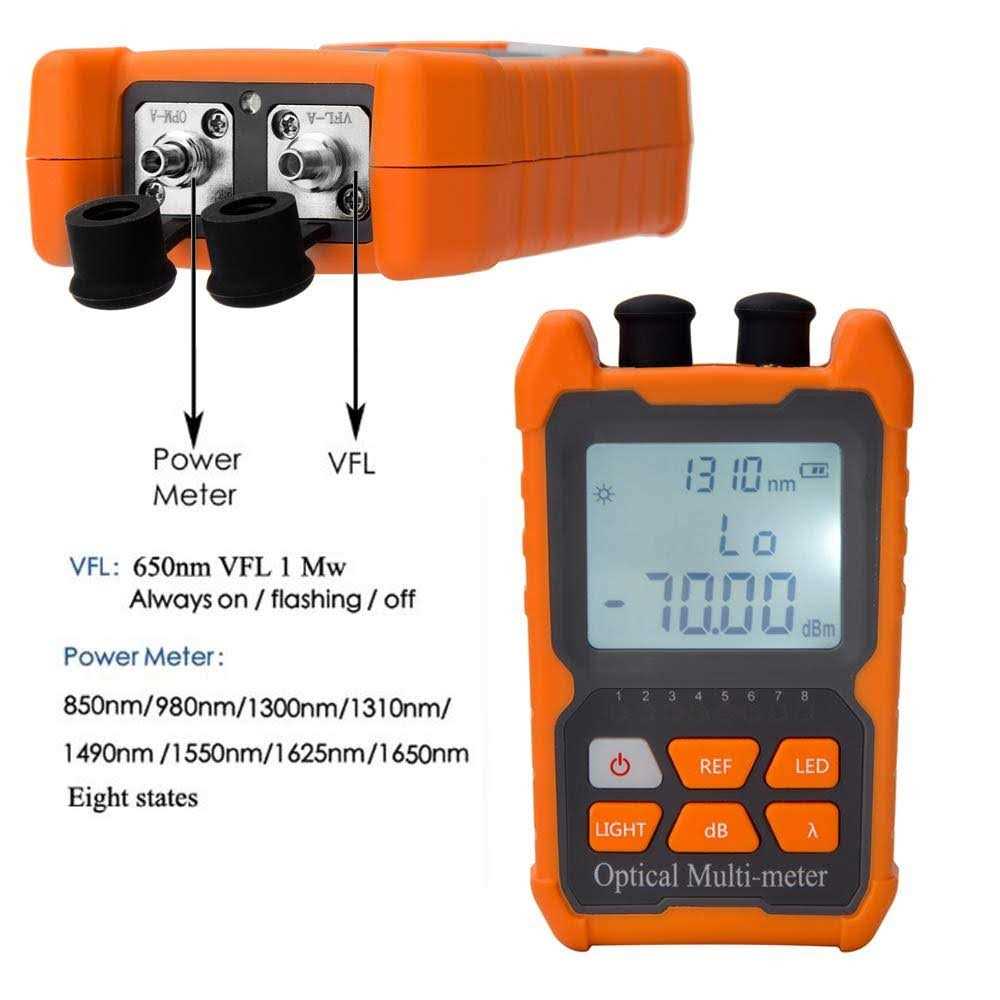

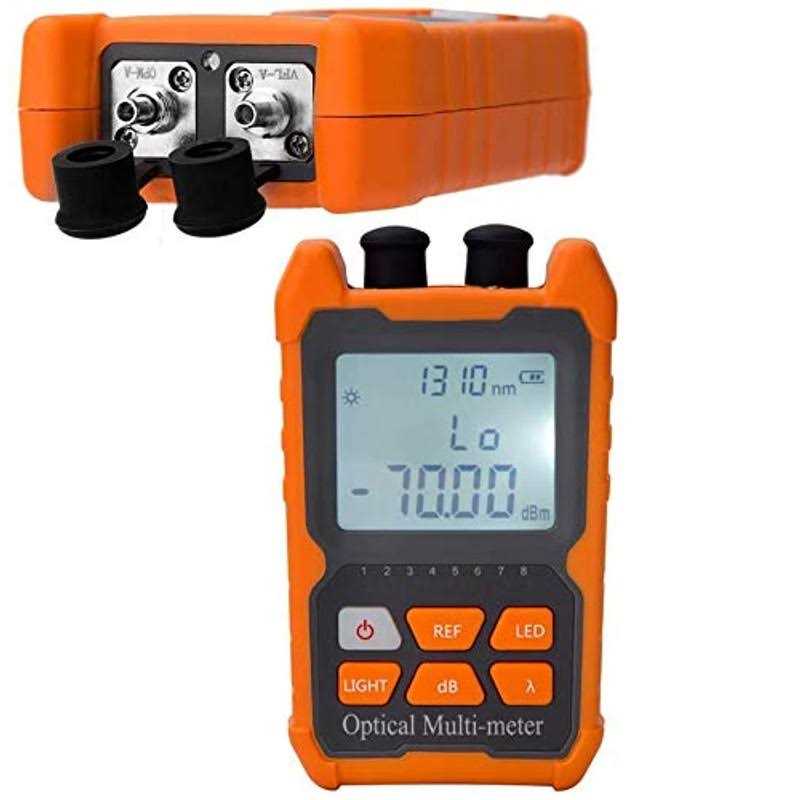

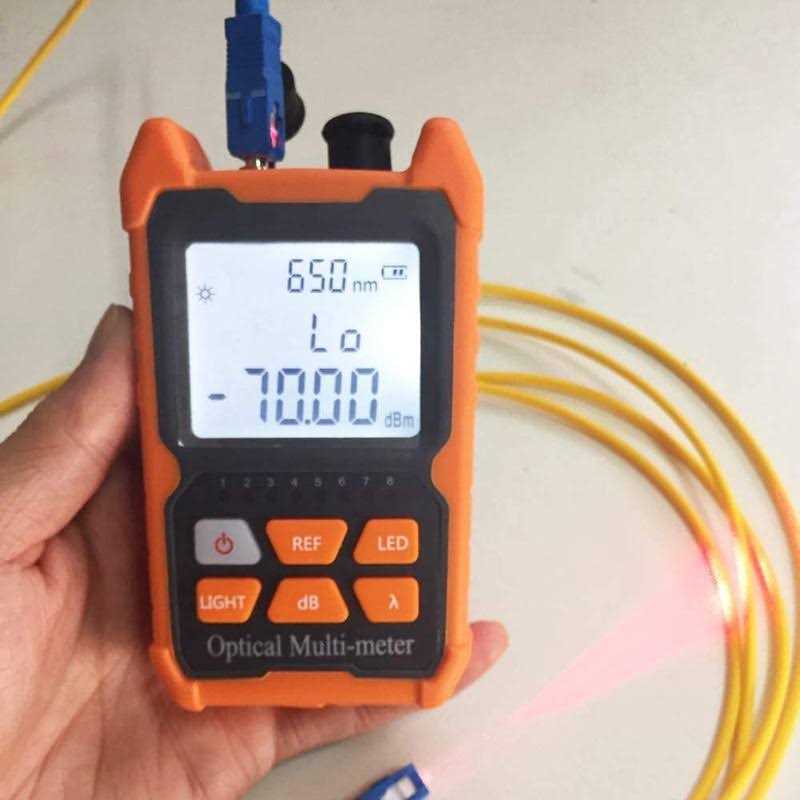

Fiber Optic Cable Tester Optical Fiber Power Meter with Visual Fault Locator B14185

D YEDEMC Fiber Optic Cable Tester Portable Optical Fiber Power Meter FC/SC/ST Universal Interface Fiber Tester Built-in 2mW Visual Fault Locator OPM

• Function: can measure 8 standdard wavelengths 850/980/1300/1310/1490/ 1550/1625/1650nm , test range: -70dBm~+6dBm, 2mw red light source.
• Support lighting,Support automatic shutdown,Support backlight selection, Support wavelenghth memory function,Support user calibration.

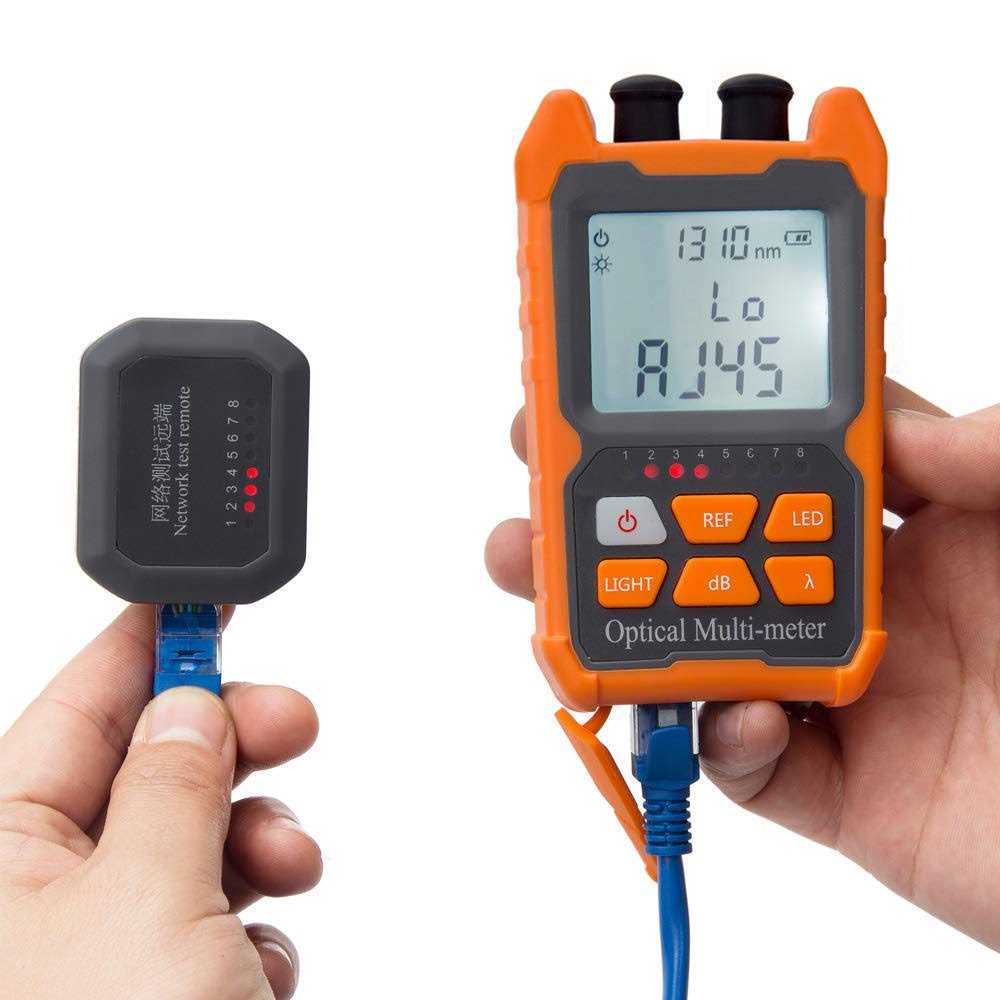

• Support FC/SC/ST universal interface,Support RJ45 testing,Support simultaneous disply of linear mW and non-linear index dBm.

Specification calibration Wavelength: 8001700nm Optical connector:FcScST universal interface Detector Type: Inga – As Measurement Range: -70 10d – Bm Accuracy: A005d – B Standard wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625,1650nm Display resolution:m – W:01% ,dBm:001dBm VFL:2m – W 650nm light source Working temperature:-10+60 Storage temperature :-30+70 Auto off time:10Min Battery continuous operating time:=72h Dimension(mm): 112x66x3cm Weight: 140g Package incdluing 1x All-IN-ONE Fiber Optical Power Meter 1x RJ45 test module 1x User Manual Not including the battery
